Epoxy Resins
ADEKA RESIN EP series （Epoxy Base Resins）
General-Purpose Epoxy Resins

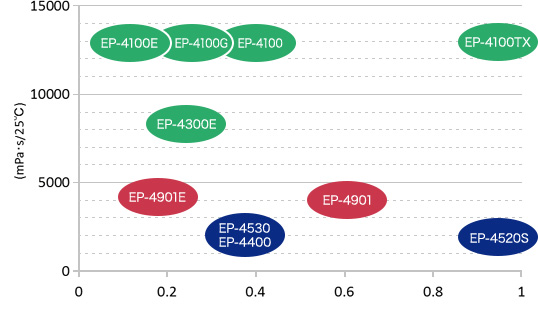

Characteristics of general-purpose epoxy resins
Grade List (basic liquid epoxy resins)
１）Bisphenol A General-purpose type
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT（g/ep） | VISCOSITY （mPa・s/25℃） |
SAPONIFIABLE CHLORINE （%） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|---|
| EP-4100 ※ |
190 | 13,000 | 0.1 | 1.16 | 1 | Standard product／Civil engineering, adhesion |
| EP-4100G ※ |
190 | 13,000 | 0.05 | 1.16 | 1 | Standard product / adhesion, coatings |
| EP-4100E ※ |
190 | 13,000 | 0.01 | 1.16 | 1 | Low saponifiable chlorine product／Electrics, laminated plates, cast molding |
| EP-4100TX ※ |
210 | 13,000 | 1.9 | 1.16 | 1 | Amorphous, low temperature curing／Civil engineering, coatings |
| EP-4300E ※ |
185 | 8,000 | 0.01 | 1.17 | 1 | Low viscosity type / Electrics, cast molding, laminated plates |
※Mutagenic substance(JP)
２)Bisphenol A low-viscosity type
PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EP-4400 ※ |
200 | 1,200 | 1.13 | 3 | Mechanical strength, amorphous / Civil engineering, coatings, electrics, adhesion |
| EP-4520S ※ |
200 | 1,000 | 1.12 | 2 | High leveling property, low skin irritancy / Civil engineering, construction, flooring |
| EP-4530 ※ |
190 | 1,000 | 1.15 | 2 | High hardness, amorphous／Floors of industrial plant and kitchen |
※Mutagenic substance(JP)
３)Bisphenol F type
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
Saponifiable chlorine | COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EP-4901※ | 170 | 3,500 | 1.19 | 2 | Standard product / Saponifiable chlorine：0.1% |
| EP-4901E※ | 170 | 3,500 | 0.01 | 2 | Low saponifiable chlorine product / Electrics, cast molding, laminated plates |
※Mutagenic substance(JP)
4) Solid Epoxy Resins (Liquid Types)
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
SPECIFIC GRAVITY （mPa・s/25℃） |
COLOR （G, max） |
Solid content （%） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EP-5100-75X | 630 | 9,000 | 2 | 75 | Solid epoxy xylene, cut product / Civil engineering, coatings |
※Mutagenic substance(JP)
Special Type Epoxy Resins

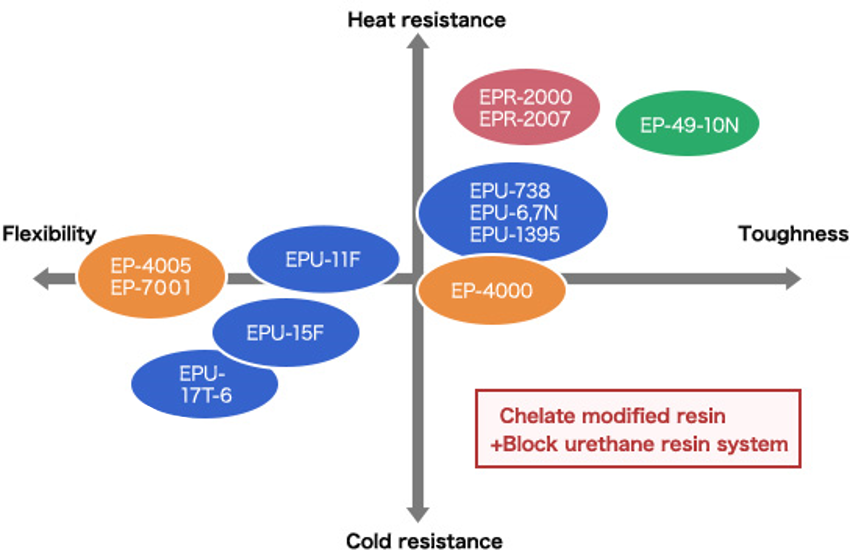

Characteristics of special type epoxy resins
Grade List
1. Special type epoxy resins
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EP-4000 | 320 | 4,500 | 1.14 | 1 | Stress relaxation / Civil engineering, adhesion, cast molding |
| EP-4005 | 510 | 800 | 1.08 | 2 | Flexibility, low viscosity / Civil engineering, adhesion, cast molding |
| EP-7001 | 700 | 5,000 | 1.08 | 3 | Flexibility / Civil engineering, adhesion, coatings |
| EP-4080E | 215 | 2,300 | 1.10 | 1 | Hydrogenated BPA type, weathering resistance, anti-cracking property / Cast molding for electric components, LED sealing, coatings |
2．Modified epoxy resin
1) Urethane modified epoxy resins
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EPU-6※ | 235 | 55,000 | 1.12 | 1 | Flexibility, high peeling strength / adhesion |
| EPU-7N※ | 230 | 13,000 | 1.12 | 1 | Flexibility, high peeling strength / adhesion |
| EPU-11F※ | 280 | 20,000 | 1.13 | 1 | Flexibility / Coatings, sealing compounds |
| EPU-15F※ | 305 | 15,000 | 1.11 | 2 | Flexibility, oil surface adhesion / Sealing compounds |
| EPU-1395※ | 215 | 15,000 | 1.13 | 2 | Toughness, low viscosity / Structure adhesives |
| EPU-73B※ | 245 | 130,000 | 1.12 | 2 | Toughness, high peeling strength / Structure adhesives |
| EPU-17※ | 230 | 30,000 | 1.16 | 1 | Flexibility / Adhesion, waterproof agent |
| EPU-17T-6※ | 270 | 7,600 | 1.13 | 2 | Flexibility, good vinyl chloride adhesiveness / Adhesion of plastics |
※Mutagenic substance(JP)
2) Rubber modified epoxy resins
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EPR-1415-1※ | 400 | 80,000 （50℃） |
1.08 | 5 | NBR modified, impact resistance, high peeling strength／Structure adhesives |
| EPR-2000※ | 215 | 23,000 | 1.16 | 5 | NBR modified, low viscosity／Structure adhesives |
| EPR-2007※ | 310 | 120,000 | 1.10 | 5 | NBR modified, high peeling strength / Structure adhesives |
| EPR-1630※ | 900 | Semi-solid form | - | 5 | CTBN modified, flexibility, good impact resistance/Structure adhesives |
※Mutagenic substance(JP)
3) Chelate modified epoxy resins
| PRODUTCS NAME ADEKA RESIN |
EPOXY EQUIVAL ENT （g/ep） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EP-49-10N※ | 220 | 30,000 | 1.17 | 2 | High anticorrosion property, nonferrous metal adhesives, low viscosity/Structure adhesives, coatings |
| EP-49-10P2※ | 300 | 55,000（50℃） | 1.17 | 1 | High chelate modified, nonferrous metal adhesives/Structure adhesives |
※Mutagenic substance(JP)
4) Block urethane resins
| PRODUTCS NAME ADEKA RESIN |
BLOCK NCO EQUIVALENT | VISCOSITY （mPa・s/25℃） |
COLOR （G, max） |
CHARACTERISTICS／USE |
|---|---|---|---|---|
| QR-9401-1 | 830 | 40,000 | 1 | Flexibility, adhesiveness/Body sealers, undercoatings |
| QR-9327-1 | 2,200 | 3,500 | 1 | Flexibility, adhesiveness, fast curing/Body sealers, undercoatings |
| QR-9466 | 1,400 | 25,000（50℃） | 1 | Toughness, adhesiveness/Structure adhesives |
ADEKA GLYCIROL ED series （Diluents）
Grade List
1) Monofunctional reaction type
| PRODUTCS NAME ADEKA GLYCIROL |
STRUCTURE | EPOXY EQUIVAL ENT （g/ep） |
SAPONIFIABLE CHLORINE （%） |
TOTAL CHLORINE （%） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
|---|---|---|---|---|---|---|---|
| ED-502 ED-502S |
 |
320 | 0.5 | 4.5 | 10 | 0.92 | 1 |
| ED-509E ※ ED-509S ※ |
 |
210 206 |
0.05 0.01 |
0.2 0.02 |
20 | 1.03 | 5 1 |
| ED-529 |  |
180 | 0.05 | 0.2 | 20 | 1.08 | 1 |
※Mutagenic substance(JP)
2) Difunctional reaction type
| PRODUTCS NAME ADEKA GLYCIROL |
STRUCTURE | EPOXY EQUIVAL ENT （g/ep） |
SAPONIFIABLE CHLORINE （%） |
TOTAL CHLORINE （%） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
|---|---|---|---|---|---|---|---|
| ED-503 ED-503G |
 |
165 135 |
0.5 0.05 |
6.5 0.3 |
25 15 |
1.08 | 1 |
| ED-506 |  |
300 | 1.2 | 6.0 | 60 | 1.07 | 2 |
| ED-523T |  |
140 | 0.05 | 5.0 | 15 | 1.09 | 1 |
SNUR substances
3) Trifunctional-/non- reaction types
| PRODUTCS NAME ADEKA GLYCIROL |
STRUCTURE | EPOXY EQUIVAL ENT （g/ep） |
SAPONIFIABLE CHLORINE （%） |
TOTAL CHLORINE （%） |
VISCOSITY （mPa・s/25℃） |
SPECIFIC GRAVITY （at 25℃） |
COLOR （G, max） |
|---|---|---|---|---|---|---|---|
| ED-505 |  |
150 | 0.5 | 8.0 | 150 | 1.06 | 1 |
| ED-508 | PO added phenol resins | - | - | - | 26 | 1.06 | 1 |
| ED-512X | Styrenated phenolic resins | - | - | - | 210 | 1.08 | 1 |

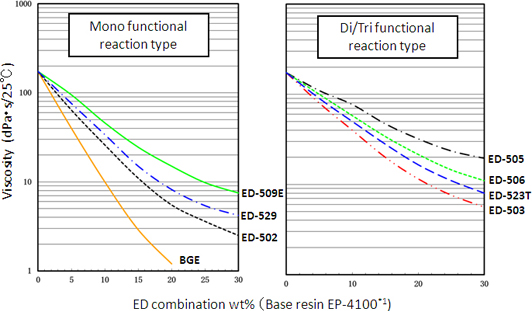

Dilution Efficiency

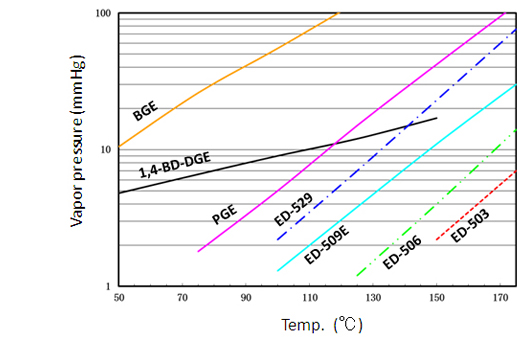

Vapor Pressure
ADEKA HARDENER EH series （Hardeners for Epoxy Resins）
Grade List
1 ) Modified aliphatic polyamine curing agent
| PRODUTCS NAME ADEKA HARDENER |
VISCOSITY （mPa・s/25℃） |
PER HUNDRED RESIN PHR（※1） |
GELATION TIME （min.） |
Amine value （mgKOH/g） |
ACTIVE HYDROGEN EQUIVALENT （g/eq） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|---|
| EH-6019 | 1,200 | 40 | 20 | 430 | 80 | General purpose, Mannich type / Civil engineering and construction |
| EH-6024 | 500 | 40 | 20 | 370 | 80 | Mannich type, for spring and autumn, decorativeness / Civil engineering and construction, flooring |
| EH-6028 | 500 | 40 | 60 | 360 | 80 | Mannich type, for summer, decorativeness / Civil engineering and construction, flooring |
| EH-479A | 500 | 40 | 15 | 400 | 80 | Mannich type, for winter, decorativeness / Civil engineering and construction, flooring |
| EH-451N | 400 | 40 | 10 | 420 | 78 | Mannich type, for extreme coldness / Civil engineering and flooring |
| EH-451K （※2） |
480 | 40 | 7 | 360 | 80 | Fast curing, for extreme coldness / Anticorrosive coatings, flooring |
| EH-6007 （※2） |
380 | 20 | 35 | 950 | 39 | Adduct type, high hardness, high heat resistance / Various adhesion |
*1 Polymerization rate per 100 of ADEKA RESIN EP-4100
*2 Deleterious substance
2) High performance polyamide amine curing agent
| PRODUTCS NAME ADEKA HARDENER |
VISCOSITY （mPa・s/25℃） |
PER HUNDRED RESIN PHR（※1） |
GELATION TIME （min.） |
Amine value （mgKOH/g） |
ACTIVE HYDROGEN EQUIVALENT （g/eq） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|---|
| EH-4602（※2） | 1,200 | 25 | 40 | 800 | 48 | Heat resistant adhesiveness, solvent resistance / Various adhesion, coatings |
| EH-2300 | 3,000 | 40 | 80 | 440 | 80 | Wet surface adhesiveness / Building materials, primer, injection |
| EH-3427A | 1,600 | 80 | 20 | 240 | 155 | Rapid curing at low temperature, wet surface adhesives, 75% solid contents / Building materials, primer |
| EH-4024W | 1,000 | 130 | 40 | 200 | 250 | Flexibility, low-temperature curing / Building materials, fiber reinforcement |
*1 Polymerization rate per 100 of ADEKA RESIN EP-4100
*2 Deleterious substance
3) Ketimine curing agent
| PRODUTCS NAME ADEKA HARDENER |
VISCOSITY （mPa・s/25℃） |
PER HUNDRED RESIN PHR（※） |
Amine value （mgKOH/g） |
ACTIVE HYDROGEN EQUIVALENT （g/eq） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EH-235R-2 | 20 | 50 | 290 | 95 | One-component stability / Coatings, adhesion |
* Polymerization rate per 100 of ADEKA RESIN EP-4100
4) Mercaptan hardeners
| PRODUTCS NAME ADEKA HARDENER |
VISCOSITY （mPa・s/25℃） |
PER HUNDRED RESIN PHR（※1） |
Gelation time （min.）（※2） |
SH value （meq/g） |
CHARACTERISTICS／USE |
|---|---|---|---|---|---|
| EH-317 | 700 | 60 | 7 | 6.9 | Rapid curing at low temperature / Coatings, adhesion |
*1 Polymerization rate per 100 of ADEKA RESIN EP-4100
*2 10 of ADEKA hardener EHC-30 used
5) Curing accelerators
| PRODUTCS NAME ADEKA HARDENER |
VISCOSITY （mPa・s/25℃） |
PER HUNDRED RESIN PHR（※） |
Gelation time （min.） |
CHARACTERISTICS／USE |
|---|---|---|---|---|
| EHC-30 | 250 | 2.5 | 7 | Curing catalyst |
* Polymerization rate per 100 of ADEKA RESIN EP-4100
ADEKA NEW COAT UC Series
Grade List
Water borne rigid urethane resin
| PRODUTCS NAME NEW COAT |
Appearance | VISCOSITY （mPa・s/25℃） |
Solid contents （%） |
CHARACTERISTICS／USE |
|---|---|---|---|---|
| UCA-726-1 | State of translucent white prepared liquid | 120 | 55 | Epoxy modified polyol emulsion / Chemical resistant floor, non-slip pavement |
| UCB-937 | State of brown prepared liquid | 60 | 100 | Epoxy modified polyol emulsion / Chemical resistant floor, non-slip pavement |
