Chemical Products

Functional Polymers

Low-Chlorine Epoxy Resins

Characteristics of Low-Chlorine Epoxy Resins

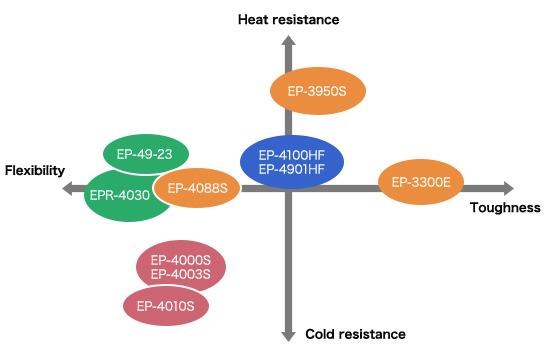

Characteristics of of Special Epoxy Resin Products

高純度エポキシ樹脂(ビスフェノールタイプ)の特徴イメージ01

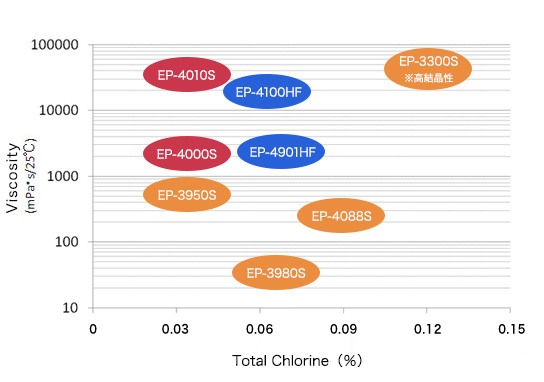

Characteristics of Low-Chlorine Epoxy Resin Product

高純度エポキシ樹脂(ビスフェノールタイプ)の特徴イメージ02

ADEKA RESIN EP series (Bisphenol Type)

Glade List

PRODUTCS NAME
ADEKA RESIN
STRUCTURE EPOXY EQUIVAL ENT
(g/ep)
VISCOSITY
(mPa・s/25℃)
SAPONIFIABLE CHLORINE(%) TOTAL
CHLORINE
(%)
COLOR
(G, max)
CHARACTERISTICS
EP-4100HF(※) BPA type 182 12,000 0.01 0.06 <1 Low chloriny, low crystallinity
EP-4901HF(※) BPF type 170 2,000 0.02 0.07 <2 Low viscosity, low crystallinity

※ Mutagenic substance

ADEKA RESIN EP series (Special Type)

Glade List

PRODUTCS NAME
ADEKA RESIN
STRUCTURE EPOXY EQUIVAL ENT
(g/ep)
VISCOSITY
(mPa・s/25℃)
SAPONIFIABLE CHLORINE(%) TOTAL
CHLORINE
(%)
COLOR
(G, max)
CHARACTERISTICS
EP-4000S BPA-PO type 260 1,800 0.02 0.3 <2 Low viscosity, low stress
EP-4000L BPA-PO type 255 2,000 0.01 0.03 <2 Low chlorined EP-4000S products
EP-4003S BPA-PO type 470 1,600 0.03 0.18 <2 Low viscosity, low stress
EP-4010S BPA-PO type 350 50,000 0.02 0.3 <2 Low stress, flexibility
EP-4010L BPA-PO type 350 50,000 0.01 0.03 <2 Low chlorined EP-4010S products
EP-4088S DCPDM type 170 230 0.03 0.3 <2 High adhesion, low viscosity
EP-4088L DCPDM type 165 230 0.01 0.09 <1 Low chlorined EP-4088S products
EP-3300E
(※1)
High reaction type 185 5,000
(50℃)
0.02 0.2 <3 High reactivity
EP-3300S
(※1)
High reaction type 165 1700
(80℃)
0.01 0.12 <1 Low chlorined EP-3300E products
EP-3950S Glycidylamine type resins 95 650 0.01 0.12 <1 High Tg, low viscosity
EP-3950L Glycidylamine type resins 95 650 0.01 0.03 <1 Low chlorined EP-3950S products
EP-3980S Glycidylamine type resins 115 30 0.01 0.07 <1 Low viscosity

※1 Low-volume new substance content

ADEKA RESIN EPR,EP series (Modified Type)

Glade List

PRODUTCS NAME
ADEKA RESIN
STRUCTURE EPOXY EQUIVAL ENT
(g/ep)
VISCOSITY
(mPa・s/25℃)
SAPONIFIABLE CHLORINE(%) TOTAL
CHLORINE
(%)
COLOR
(G, max)
CHARACTERISTICS
EPR-4030 (※) NBR modified type 365 60,000
(50℃)
0.01 0.1 <3 High adhesion
EP-49-23 (※) chelate modified type 175 2,700 0.01 0.18 <3 High adhesion

※Mutagenic substance

ADEKA GLYCIROL ED series (Diluents)

Glade List

1) Monofunctional reaction type

PRODUTCS NAME
ADEKA GLYCIROL
STRUCTURE EPOXY EQUIVAL ENT
(g/ep)
SAPONIFIABLE CHLORINE(%) TOTAL
CHLORINE
(%)
VISCOSITY
(mPa・s/25℃)
SPECIFIC GRAVITY
(at 25℃)
COLOR
(G,max)
ED-509S 化学構造式イメージ 206 0.01 0.02 20 1.03 1

※Mutagenic substance

2) Difunctional reaction type

PRODUTCS NAME
ADEKA GLYCIROL
STRUCTURE EPOXY EQUIVAL ENT
(g/ep)
SAPONIFIABLE CHLORINE(%) TOTAL
CHLORINE
(%)
VISCOSITY
(mPa・s/25℃)
SPECIFIC GRAVITY
(at 25℃)
COLOR
(G,max)
ED-503G 化学構造式イメージ 135 0.05 0.3 15 1.08 1

※SNUR substances

ADEKA HARDENER EH series(Latent Hardener)

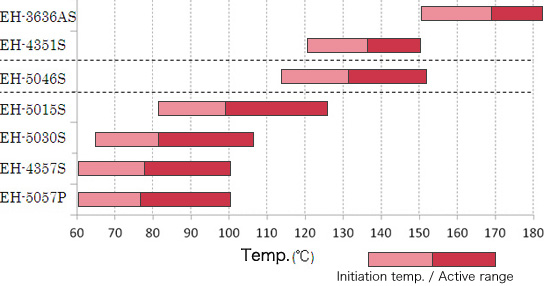

The Reaction Temperature Range with Epoxy Resins

The reaction temperature range with epoxy resins

Glade List

1 ) Dicyandiamide types

PRODUTCS NAME
ADEKA HARDENER
MELTING POINT
(℃)
PER HUNDRED RESIN
PHR (※)
PARTICLE SIZE
(μm)
GELATION TIME CHARACTERISTICS
EH-3636AS 210 5-10 5(d50) 30min /180℃ DICY
EH-4351S 190 5-10 5(d50) 2min /150℃ DICY type rapid curing

※ Polymerization rate per 100 of ADEKA RESIN EP-4100HF

2 ) Imidazole types

PRODUTCS NAME
ADEKA HARDENER
MELTING POINT
(℃)
PER HUNDRED RESIN
PHR(※1)
PARTICLE SIZE
(μm)
GELATION TIME CHARACTERISTICS
EH-5011S 100-110 20-25 5(d50) 5min/100℃ DICY catalyst, rapid curing
EH-5046S 120-125 20-25 5(d50) 40sec /150℃ Rapid curing at high temperature, high adhesion, high Tg

※ Weight ratio with respect to 100 parts of BPA type epoxy resin ADEKA RESINE EP-4100HF

3 ) Polyamine types

PRODUTCS NAME
ADEKA HARDENER
MELTING POINT
(℃)
PER HUNDRED RESIN
PHR (※)
PARTICLE SIZE
(μm)
TOTAL
CHLORINE
(%)
GELATION TIME
(min.)
CHARACTERISTICS
EH-5015S 85-105 20-40 5(d50) 0.1 15/100℃ High versatility, low blended amount (parts by mass)
EH-5030S 70-80 40-50 5(d50) 0.07 5/80℃ Rapid curing at low temperature, low outgassing
EH-4357S 80-90 75-85 5(d50) 0.07 3/80℃ Low temperature rapid cure, high reliability
EH-5057P 75-85 50-60 5(d50) 0.02 3/80℃ Low chlorine product of EH-4357
EH-5057PK 75-85 50-60 2(d50)
4.5(d100)
0.02 3/80℃ Pulverized product of EH-5057P

※ Weight ratio with respect to 100 parts of BPA type epoxy resin ADEKA RESINE EP-4100HF

4 ) Modified aromatic amine types

PRODUTCS NAME
ADEKA HARDENER
VISCOSITY
(mPa・s/25℃)
PER HUNDRED RESIN
PHR(※)
Amine number
(mgKOH/g)
SPECIFIC GRAVITY
(at 25℃)
ACTIVE
HYDROGEN
EQUIVALENT
(g/eq)(℃)
CHARACTERISTICS
EH-105L 900 30-32 370 1.13 10 Low viscosity, long pot life

※ Weight ratio with respect to 100 parts of BPA type epoxy resin ADEKA RESINE EP-4100HF
